Parker 61 arrow repair


  • Please log in to reply
3 replies to this topic

#1 fernobre

fernobre

    Newbie

  • Members
  • Pip
  • 4 posts
  • LocationLisbon, Portugal

Posted 21 April 2015 - 10:22 AM

One of the most common problems with Parker 61's is a missing arrow.

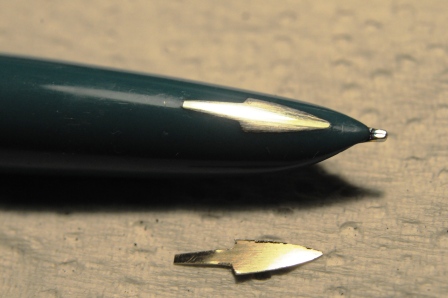

So I decided to start making my own arrows. Since I have one complete (with arrow) pen, I use it as a guide for size and form.




I take a fine sheet of aluminum metal. Using scissors I start cutting a rough arrow form.




The final form is done using a Dremel and carefully trimming the contour until it matches the original arrow.








The arrow is then glued with cyanoacrylate glue. After a couple of hours the surfaces are polished with very fine sandpaper and polish.



Here is the final result:

- original (teal P61)

- two fabricated arrows (black and gray P61)



Are they perfect? Not yet. But they match my requirements and I had a lot of fun doing it!










Regards,

fernobre



#2 BrianMcQueen

BrianMcQueen

    journeyman

  • Members
  • 1,016 posts
  • LocationLynchburg, VA

Posted 21 April 2015 - 03:11 PM

That looks like a pretty decent way to salvage a hood.  However, I don't know how long cyanoacrylate glue will hold up.  That type of glue tends to break down after some time when exposed to enough water.  Epoxy might be a better choice.



#3 Indy-Pen-Dance

Indy-Pen-Dance

    Member

  • Members
  • PipPipPip
  • 50 posts
  • LocationZionsville, Indiana

Posted 06 May 2015 - 12:37 AM

Hypo-cement would be good too.  The cyanoacrylate glue will fail.  It may not fail in a month, but it will eventually lose it's grip.


Have an old fountain pen that needs restored or a newer one that needs some TLC? We provide quality restoration and nib work so your pens can glide across the page as gracefully as the best Waltz dancers.



www.Indy-Pen-Dance.com






#4 ihimlen

ihimlen

    Member

  • Members
  • PipPipPip
  • 41 posts

Posted 28 May 2015 - 01:25 AM

I bet the black one was done first and the gray was the second. It always gets better with each repair :) When it comes to the glue, you could probably use a teeny bit of Gorilla Glue (but using this glue takes a bit of practice on small objects) or Epoxy. But that's something to worry about when the current bond fails ;-)


Life is too important to be taken seriously
(Oscar Wilde)
